 Din aluminium lug AU

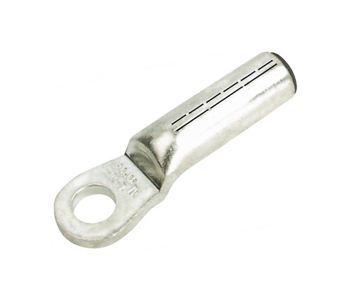

Din aluminium lug
Material: A1-99.5%
Surface treatment: Tin-plated mini 15 microns
Product Property: It is in accordance with Din 46329 with markings for correct crimping. And its barrel capped is filled with joint comp ound to acoid oxidization. And its type test is follow IEC 61238-1.
Modle Dimensions(mm)
L d Φ
AU 16-8 60 5.8 8.4
AU 25-8 61.5 6.8 8.4
AU 25-10 61.5 6.8 10.5
AU 35-10 77 8 10.5
AU 50-10 77 9.8 10.5
AU 50-12 77 9.8 13
AU 70-10 84.5 11.2 10.5
AU 95-12 88 13.2 13
AU 120-12 95 14.7 13
AU 150-12 105 16.3 13
AU 150-16 105 16.3 17
AU 185-12 106 18.3 13
AU 185-16 106 18.3 17
AU 240-12 122 21 13
AU 240-16 122 21 17
AU 300-16 123 23.3 17
