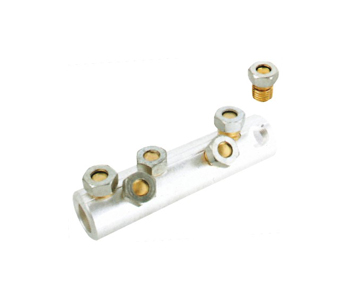

 Bolted aluminium connector
Bolted aluminum connector
Material:Aluminum alloy
Surface treatment:Tin plated mini 15 microns

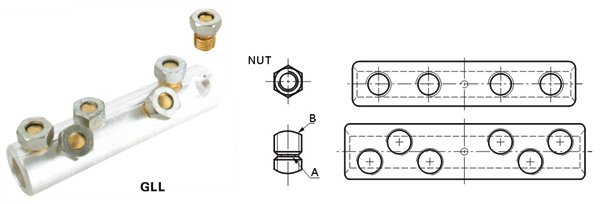

Product property:The bolt has two shear ends A and B(Note:A is shorter than B).the special design ensures perfect strength and electric conductors when installing you can choose the suitable end to screw and tighten it until it breaks the usage is easy and quick and its type test is in accordance with IEC61238-1
Modle Conducot cross-section(mm2) shear head A or B Number of bokts
GLL16-70 16-35
50-70
B
A
4
GLL95-150 95-120
150
B
A
4
GLL185-240 185
240
B
A
6
