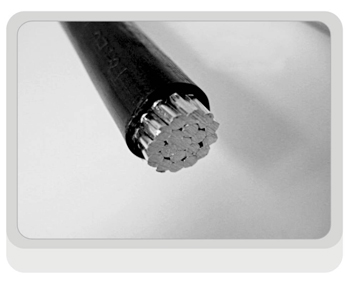

 LV Overhead Service Drop Conductors
- Cover Line Wire
- Aluminum Conductor
¢Application
  Covered line wire is used for primarily for overhead secondary distribution lines.It is not an electrically insulated cond-uctor and is treated as bare conductor when installed.
¢Construction
  Conductors are aluminum alloy 1350 H19,6201-T81,or ACSR Conductors,concentrically Stranded and covered for weather proofing with Polyethylene,High Density Polyethylene(HDPE)or Cross-linked Polyethylene(XLPE).
¢Specification
  Covered Line Wire meets or exceeds the following ASTM Specifications
   £ASTM B 230,aluminum wire,1350-H19 for electrical purpose
   £ASTM B 231,aluminum conductor,concentric laying stranded
   £ASTM B 232,Aluminum conductor steel reinforced(ACSR)
   £ASTM B 399,Concentric laying stranded aluminum alloy conductor 6201-T81
   Covered line wire meets or exceeds all applicable requirement of ICEA S-70-547

- Cover Line Wire
- Aluminum Conductor
Covered Line Wire-Aluminum Conductor Steel Reinforced(ACSR)
Code Name Size AWG or MCM Stranded Insulation thickness(Mils) Overall Diameter(Inches) Rated Strength(Lbs) Mass of Wire Ampacity*(A)XLPE
XLPE POLY
Walnut 6 6/1 30 0.258 1131 49 47 105
Butternut 4 6/1 30 0.303 1760 71.8 70 135
Hickory 4 6/1 30 0.309 2240 81.6 79.8 135
Pignut 2 6/1 45 0.397 2710 118.1 114.8 180
Beech 2 6/1 45 0.405 3460 134.1 130.7 180
Chestnut 1 6/1 45 0.434 3370 145.5 141.8 210
Almond 1/0 6/1 60 0.506 4160 190.4 184.8 235
Pecan 2/0 6/1 60 0.554 5040 234.2 227.9 270
Filbert 3/0 6/1 60 0.607 6290 288.5 281.4 305
Buckeye 4/0 6/1 60 0.666 7930 365.5 348.5 345
Hackberry 266.8 18/1 60 0.711 6540 354.8 346.8 435

Covered Line Wire-Aluminum Conductor Steel Reinforced(ACSR)
Apple 6 Solid 30 0.222 445 33 32 105
Pear 4 Solid 30 0.264 675 48.5 47.3 135
Apricot 4 7 wire 30 0.285 790 51.5 50.8 140
Peach 2 7 wire 45 0.373 1220 87.1 84 180
Quince 1/0 7 wire 60 0.477 1790 140.7 135.6 240
Orange 2/0 7 wire 60 0.522 2260 171.9 166.2 280
Fig 3/0 7 wire 60 0.570 2740 210.5 204 320
Olive 4/0 7 wire 60 0.626 3450 248.7 251.4 370
Pomegranate 4/0 19 wire 60 0.632 3620 254.8 247.9 370
Mulberry 266.8 19 wire 60 0.692 4470 313.5 305.8 430
Anona 366.4 19 wire 60 0.766 5535 387.6 378.8 495
Molles 397.5 19 wire 75 0.852 6400 469.2 457.4 545
Huckleberry 477 19 wire 75 0.921 7820 550 537.5 610
Paw paw 556.5 19 wire 75 0.982 8950 633 619.4 670
Breadfruit 636 61 wire 95 1.080 10510 742.6 724.7 720
Persimmon 795 61 wire 95 1.187 12900 910 890 825
Grapefruit 1033.5 61 wire 95 1.327 16500 1156.7 113.8 970

Covered Line Wire Aluminum Alloy Stranded Conductor(AAAC)
Hornbeam 4 7 wire 30 0.310 1480 62.1 60.1 145
Linden 2 7 wire 45 0.406 2520 96.1 93.3 190
Oilnut 1/0 7 wire 60 0.518 4010 166.1 160 250
Waterash 2/0 7 wire 60 0.567 4850 203.3 196.4 290
Shellbark 3/0 7 wire 60 0.622 6110 249.4 241.4 335
Planetree 4/0 7 wire 60 0.683 7700 307.3 298.1 385
*Ampacity rating base on 75≧ conductor temperature; 25≧ ambient temperature; Emissivity 0.91 and coefficient of absorbtion of 0.95.

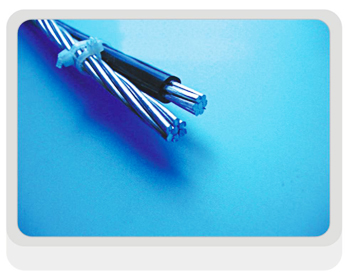

- Duplex Service Drop Conductors-
- Aluminum Conductor
¢Application
  To supply 120V or 240V and below aerial service for temporary service at construction Sites,outdoor or street lighting,for service at 600V or below at a conductor temperature of 70 oC maximum for Polyethylene insulation or of 90 oC maximum for Crosslinked Polyethylene insulation.
¢Construction
  Cocentric stranded or compressed conductors of aluminum 1350 H19 covered for weather proofing with Polyethylene,High Density Polyethylene(HDPE) or Cross-linked Polyethylene(XLPE)insulation,concentric stranded AAC,ACSR or 6210 AAAC Alloy neutral messenger.
¢Specification
  Duplex service drop conductors meet or exceed the following ASTM Specifications
   £ASTM B 230,aluminum wire,1350-H19 for electrical purpose
   £ASTM B 231,aluminum conductor,concentric laying stranded
   £ASTM B 232,Aluminum conductor steel reinforced(ACSR)
   £ASTM B 399,Concentric laying stranded aluminum alloy conductor 6201-T81
   Service drop conductors meet or exceed all applicable requirement of ICEA S-76-474

- Duplex Service Drop Conductors-
- Aluminum Conductor
Duplex service drop conductors,Aluminum Conductor with AAC Neutral
Code Name Phase Conductor Bare Neutral Messenger Mass of Wire(LBS/Kft) Ampacity*(A)
Size AWG Stranded(Nos) Insulation Thickness(Mils) Size AWG Stranded(Nos) Breaking Strength(Lbs) XLPE POLY XLPE POLY
Pekingese 6 Solid 45 6 7 wire 563 63.5 61.7 85 70
Collie 6 7 wire 45 6 7 wire 563 66.8 63.1 85 70
Dachshund 4 Solid 45 4 7 wire 881 95.5 93.4 110 90
Spaniel 4 7 wire 45 4 7 wire 881 100.5 95.4 110 90
Doberman 2 7 wire 45 2 7 wire 1350 152.7 145.7 150 120
Malamute 1/0 19 wire 60 1/0 7 wire 1990 242.6 234.2 205 160

Duplex service drop conductors Aluminum Conductor and with ACSR neutral
Setter 6 Solid 45 6 6/1 1190 75 73.2 85 70
Shepherd 6 7 wire 45 6 6/1 1190 78.3 74.6 85 70
Eskimo 4 Solid 45 4 6/1 1860 113.7 111.6 110 90
Terrier 4 7 wire 45 4 6/1 1860 118.7 113.6 110 90
Chow 2 7 wire 45 2 6/1 2850 181.7 174.7 150 120
Bull 1/0 19 wire 60 1/0 6/1 4380 288.7 280.3 200 160

Duplex service drop conductors Aluminum Conductor and with AAAC 6201 neutral
Chihuahua 6 Solid 45 6 7 wire 1110 67.6 65.8 85 70
Vizsla 6 7 wire 45 6 7 wire 1110 70.9 67.2 85 70
Harrier 4 Solid 45 4 7 wire 1760 102 99.9 110 90
Whippet 4 7 wire 45 4 7 wire 1760 107 101.9 110 90
Schnauzer 2 7 wire 45 2 7 wire 2800 163.3 156.2 150 120
Heeler 1/0 19 wire 60 1/0 7 wire 4460 259.2 250.8 200 160
*Ampacity rating base on 75≧ conductor temperature; 25≧ ambient temperature; Emissivity 0.91 and coefficient of absorbtion of 0.95

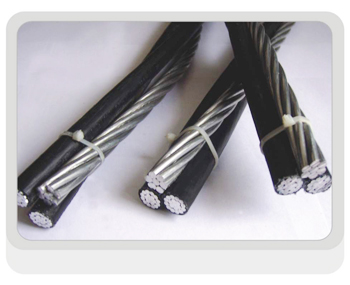

- Triplex Service Drop Conductors-
- Aluminum Conductor
¢Application
  To supply power from the utility¨s lines to the consumer¨s weather-head.For service at 600V or below(Phase to phase)at a conductor temperature of 70 oC maximum for Polyethylene insulation or of 90 oC maximum for Cross-linked Polyethylene insulation
¢Construction
  Concentric stranded or compressed conductors of aluminum 1350 H19 covered for weather proofing with Polyethylene,High Density Polyethylene(HDPE) or Cross-linked Polyethylene(XLPE)insulation,concentric stranded AAC,ACSR or 6210 AAAC Alloy neutral messenger.
¢Specification
  Triplex service drop conductors meet or exceed the following ASTM Specifications
   £ASTM B 230,aluminum wire,1350-H19 for electrical purpose
   £ASTM B 231,aluminum conductor,concentric laying stranded
   £ASTM B 232,Aluminum conductor steel reinforced(ACSR)
   £ASTM B 399,Concentric laying stranded aluminum alloy conductor 6201-T81
   Service drop conductors meet or exceed all applicable requirement of ICEA S-76-474

- Triplex Service Drop Conductors-
- Aluminum Conductor
Triplex service drop conductors Aluminum Conductor and with AAAC6201 neutral
Code Name Phase Conductor Bare Neutral Messenger Mass of Wire(LBS/Kft) Ampacity*(A)
Size AWG Stranded(Nos) Insulation Thickness(Mils) Size AWG Stranded(Nos) Breaking Strength(Lbs) XLPE POLY XLPE POLY
Minex 6 Solid 45 6 7 wire 1110 106.6 102.9 85 70
Hippa 6 7 wire 45 6 7 wire 1110 107 105.7 85 70
Prawn 4 Solid 45 4 7 wire 1760 158.4 154.1 110 90
Barnacles 4 7 wire 45 4 7 wire 1760 160 157 110 90
Shrimp 2 7 wire 45 2 7 wire 2800 243 238 150 115
Gammarus 1/0 7 wire 60 1/0 7 wire 4460 390 384 200 155
Leda 1/0 19 wire 60 1/0 7 wire 4460 384 378 200 155
Dungenese 2/0 7 wire 60 2/0 7 wire 5390 481 474 230 180
Cyclops 2/0 19 wire 60 2/0 7 wire 5390 473 467 230 180
Flustra 3/0 19 wire 60 3/0 7 wire 6790 586 589.1 260 205
Lepas 4/0 19 wire 60 4/0 7 wire 8560 725 716 300 235

Triplex service drop conductors Aluminum Conductor and with reduced AAAC 6201 neutral
Artemia 4 Solid 45 6 7 wire 1110 134 132 110 90
Crab 4 7 wire 45 6 7 wire 1110 144 141.2 110 90
Solaster 2 7 wire 45 4 7 wire 1760 216 212.6 150 115
Sancrab 1/0 7 wire 60 2 7 wire 2800 348 341 200 155
Echinus 1/0 19 wire 60 2 7 wire 2800 342 336 200 155
Crayfish 2/0 7 wire 60 1 7 wire 3530 452.6 422.5 230 180
Sipho 2/0 19 wire 60 1 7 wire 3530 441 422.5 230 180
Fulgar 3/0 19 wire 60 1/0 7 wire 4460 525 518 260 205
Arca 4/0 19 wire 60 1/0 7 wire 5390 640 632 300 235

Triplex service drop conductors Aluminum Conductor and with AAAC neutral
Haiotis 6 Solid 45 6 7 wire 563 102.5 98.8 85 70
Patella 6 7 wire 45 6 7 wire 563 104 101.6 85 70
Fusus 4 Solid 45 4 7 wire 881 151.9 147.6 110 90
Oyster 4 7 wire 45 4 7 wire 881 154 151.7 110 90
Clam 2 7 wire 45 2 7 wire 1350 232 228 150 115
Murex 1/0 7 wire 60 1/0 7 wire 1990 374 367 200 155
Purpura 1/0 19 wire 60 1/0 7 wire 1990 368 362 200 155
Nassa 2/0 7 wire 60 2/0 7 wire 2510 461 453 230 180
Melita 3/0 19 wire 60 3/0 19 wire 3310 585.2 562.9 260 205
Portunus 4/0 19 wire 60 4/0 19 wire 4020 693 684 300 235
Nannynose 336.4 19 wire 80 336.4 19 wire 6146 1111 1096 380 290
*Ampacity rating base on 75≧ conductor temperature; 25≧ ambient temperature; Emissivity 0.91 and coefficient of absorbtion of 0.95

- Triplex Service Drop Conductors-
- Aluminum Conductor
Triplex service drop conductors Aluminum Conductor and with ACSR Full size neutral
Code Name Phase Conductor Bare Neutral Messenger Mass of Wire(LBS/Kft) Ampacity*(A)
Size AWG Stranded(Nos) Insulation Thickness(Mils) Size AWG Stranded(Nos) Breaking Strength(Lbs) XLPE POLY XLPE POLY
Paludina 6 Solid 45 6 6/1 1190 114 113 85 70
Voluta 6 7 wire 45 6 6/1 1190 115 112 85 70
Whelk 4 Solid 45 4 6/1 1860 163 161 110 90
Periwinkle 4 7 wire 45 4 6/1 1860 172 169 110 90
Conch 2 7 wire 45 2 6/1 2850 262 257 150 115
Neritina 1/0 7 wire 60 1/0 6/1 4380 420 414 200 155
Cenia 1/0 19 wire 60 1/0 6/1 4380 414 408 200 155
Runcina 2/0 7 wire 60 2/0 6/1 5310 519 512 230 180
Triton 2/0 19 wire 60 2/0 6/1 5310 511 505 230 180
Cherrystone 3/0 7 wire 60 3/0 6/1 6620 656 643 260 205
Mursia 3/0 19 wire 60 3/0 6/1 6620 633 626 260 205
Razor 4/0 7 wire 60 4/0 6/1 8350 814 799 300 235
Zuzara 4/0 19 wire 60 4/0 6/1 8350 785 777 300 235
Limpet 336.4 19 wire 80 336.4 18/1 8680 1161 1147 380 290

Triplex service drop conductors Aluminum Conductor and with ACSR Reduced size neutral
Scallop 4 Solid 45 6 6/1 1190 142 139 110 90
Strombus 4 7 wire 45 6 6/1 1190 151 148 110 90
Cockle 2 7 wire 45 4 6/1 1860 228 224 150 115
Janthina 1/0 7 wire 60 2 6/1 2850 367 360 200 155
Ranella 1/0 19 wire 60 2 6/1 2850 361 356 200 155
Cavolinia 2/0 7 wire 60 1 6/1 3350 452 444 230 180
Clio 2/0 19 wire 60 1 6/1 3350 444 437 230 180
Sanddollar 3/0 7 wire 60 1/0 6/1 4380 570 557 260 205
Aega 3/0 19 wire 60 1/0 6/1 4380 565 552 260 205
Cuttlefish 4/0 7 wire 60 2/0 6/1 5310 706 691 300 235
Cerapus 4/0 19 wire 60 2/0 6/1 5310 678 670 300 235
Cowry 336.4 19 wire 80 4/0 6/1 8350 1135 1093 380 290
*Ampacity rating base on 75≧ conductor temperature; 25≧ ambient temperature; Emissivity 0.91 and coefficient of absorbtion of 0.95

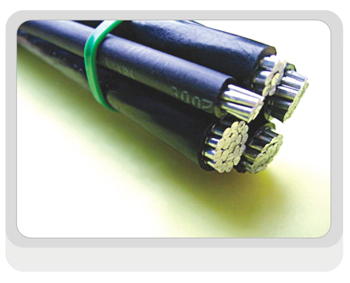

- Quadruplex Service Drop Conductors-
- Aluminum Conductor
¢Application
  To supply 3 phase power,usually from a pole-mounted transformer,to the user¨s service Head where connection to the service entrance cable is made.To be used of service of 600V or below(Phase to phase)and at a conductor temperature of 70 oC maximum for Polyethylene insulation or of 90 oC maximum for Cross-linked Polyethylene insulation
¢Construction
  Concentric stranded or compressed conductors of aluminum 1350 H19 covered for weather proofing with Polyethylene,High Density Polyethylene(HDPE) or Cross-linked(HDPE) or Cross-linded Polyethylene(XLPE)insulation,concentric stranded AAAC,ACSR or 6210 AAAC Alloy neutral messenger.
¢Specification
   Quadruplex service drop conductors meet or exceed the following ASTM Specifications
   £ASTM B 230,aluminum wire,1350-H19 for electrical purpose
   £ASTM B 231,aluminum conductor,concentric laying stranded
   £ASTM B 232,Aluminum conductor steel reinforced(ACSR)
   £ASTM B 399,Concentric laying stranded aluminum alloy conductor 6201-T81
   Service drop conductors meet or exceed all applicable requirement of ICEA S-76-474

- Quadruplex Service Drop Conductors-
- Aluminum Conductor
Quadruplex service drop conductors Aluminum Conductor and with AAC neutral
Code Name Phase Conductor Bare Neutral Messenger Mass of Wire(LBS/Kft) Ampacity*(A)
Size AWG Stranded(Nos) Insulation Thickness(Mils) Size AWG Stranded(Nos) Breaking Strength(Lbs) XLPE POLY XLPE POLY
Clydesdate 4 Solid 45 4 7 wire 881 208 201 100 80
Pinto 4 7 wire 45 4 7 wire 881 223 207 100 80
Mustang 2 7 wire 45 2 7 wire 1350 333 312 135 105
Criollo 1/0 19 wire 60 1/0 7 wire 1990 529 504 180 135
Percheron 2/0 19 wire 60 2/0 7 wire 2510 649 620 205 155
Hanoverian 3/0 19 wire 60 3/0 19 wire 3310 799 765 235 180
Oldenburg 4/0 19 wire 60 4/0 19 wire 4020 986 946 270 205
Lippizaner 336.4 19 wire 80 336.4 19 wire 6146 1546 1519 330 240

Quadruplex service drop conductors Aluminum Conductor and with ACSR neutral
Morochuca 6 Solid 45 6 6/1 1190 152 147 75 60
Chola 6 7 wire 45 6 6/1 1190 162 151 75 60
Morgan 4 Solid 45 4 6/1 1860 226 220 100 80
Hackney 4 7 wire 45 4 6/1 1860 241 226 100 80
Palomino 2 7 wire 45 2 6/1 2850 362 342 135 105
Costena 1/0 19 wire 60 1/0 6/1 4380 575 550 180 135
Grullo 2/0 19 wire 60 2/0 6/1 5310 707 678 205 155
Suffolk 3/0 19 wire 60 3/0 6/1 6620 872 838 235 180
Appaloosa 4/0 19 wire 60 4/0 6/1 8350 1079 1039 270 205
Bronco 336.4 19 wire 80 336.4 18/1 8580 1613 1568 330 240
Gelding 336.4 19 wire 80 4/0 6/1 8350 1548 1494 330 240

Quadruplex Service drop conductors Aluminum Conductor and with AAAC 6201 neutral
Bay 6 Solid 45 6 6/1 1110 145 140 75 60
French coach 6 7 wire 45 6 6/1 1110 155 144 75 60
German coach 4 Solid 45 4 7 wire 1760 214 208 100 80
Arabian 4 7 wire 45 4 7 wire 1760 229 2144 100 80
Belgian 2 7 wire 45 2 7 wire 2800 344 323 135 105
Shetland 1/0 19 wire 60 1/0 7 wire 4460 546 521 180 135
Thoroughbred 2/0 19 wire 60 2/0 7 wire 5390 670 641 205 155
Trotter 3/0 19 wire 60 3/0 7 wire 6790 825 791 235 180
Walking 4/0 19 wire 60 4/0 7 wire 8560 1019 979 270 205
*Ampacity rating base on 75≧ conductor temperature; 25≧ ambient temperature; Emissivity 0.91 and coefficient of absorbtion of 0.95

Copyright © Laurence Power Equipment Co.,Ltd. All Right Reserved.
